Walthers Rolling Stock

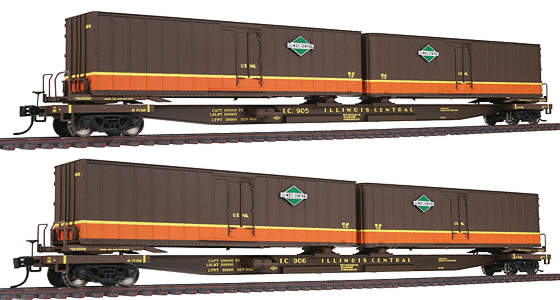

Gold Line(TM) Flexi-Van Flat Car w/Two Trailers Limited Run
|
Illinois Central #905 & #906
Walthers Part # 932-23923, p. 144 Walthers 2008 HO Scale Reference
HO scale, $84.98, sold out at Walthers
|
Flexi-Vans Traveled In Freight & Passenger Consists
* Limited-Run Two Pack
* All-New Tooling
* Includes Two Road-Specific Trailers
* Use on Freight or Passenger Trains
* Additional Trailers Sold Separately
Walthers Gold Line Freight Cars
* Fully Assembled
* Metal RP-25 Wheels
* Knuckle Couplers
* Razor-Sharp Paint and Lettering
* Modeler-Installed Grab Irons Included
As trailer-on-flat-car (TOFC) service evolved in the late 50s, many roads
began trying to cut costs, opening the door to new ideas. Among these was
the Flexi Van system, first tested by the New York Central in 1957.
Designed to speed loading and unloading, the design used a special
turntable (mounted on a standard flat car for testing), and a 36' trailer
with a removable wheel assembly (bogie). In operation, the trailer was
first aligned with the turntable and backed into place. The bogie was then
unlocked and the trailer slid aboard. Once in position, a pin locked the
trailer to the turntable, which was turned to the loaded position using the
on-board hydraulics. The successful test car paved the way for the first
production models in 1958. These were low profile skeleton cars, designed
to meet clearance restriction on the NYC and carry two trailer units.
Simple pivoting turntables replaced the complex and expensive hydraulic
units. Early cars handled only 36' units, but as 40' was quickly becoming
the standard length for highway trailers, later models carried a 36 and a
40' unit; cars built from 1961 to 1968 carried two 40' units. On later cars
designed to handle 40' bodies, the turntables were moved to the ends and
required the services of a specialized terminal tractor. These short
wheelbase rigs had a retractable front wheel to simplify lining the truck
and trailer with the turntable, and a large push pole provided the extra
reach needed to spin the trailer into place. Lighter and lower than
standard TOFC cars, the unique design proved well suited for high-speed
operation and many cars were rebuilt so they could be moved in both freight
and passenger service. Other roads showed some interest in the system,
including ATSF, CB&Q, IC, MILW, WP and more. Although intended for most
types of freight, the system eventually proved quite popular for handling
mail. Although successful, the system had its limits. Snow and ice caused
turntable problems during winter months, and the special bogies had to be
available at any point where units were off-loaded. The rapid rise of
containers and the acceptance of industry-wide methods for moving trailers
on flat cars soon pushed Flexi Van service into the pages of history.
Flexi-Van Flat Cars w/Two 40' Trailers:
NYC #504228
MILW #7025
IC #903
NYC #504100
MILW #7028
SAL #1
SOU #50104
WP #1618
Undecorated
Flexi-Van Flat Cars w/Two 40' Trailers, Limited-Run 2-Packs:
MILW #7026 & #7033
IC #905 & #906
SAL #2 & #3
SOU #50109 & #50114
WP #1616 & #1623
Flexi-Van 40' Trailer w/Bogie Kits:
NYC
MILW
IC (Side-Door Version)
CB&Q
SAL (Side-Door Version)
SOU
WP
L&N
SOO
Undecorated (End-Door Version)
PLEASE NOTE: As these cars are the correct prototype length, a minimum 24"
radius is recommended for operation.
|
